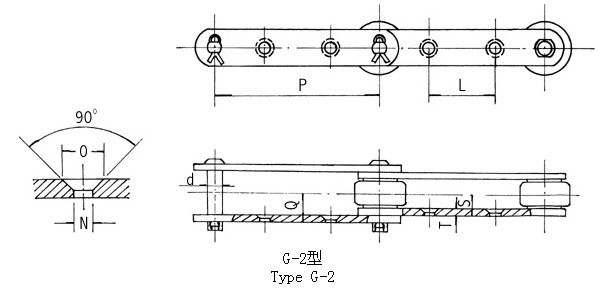

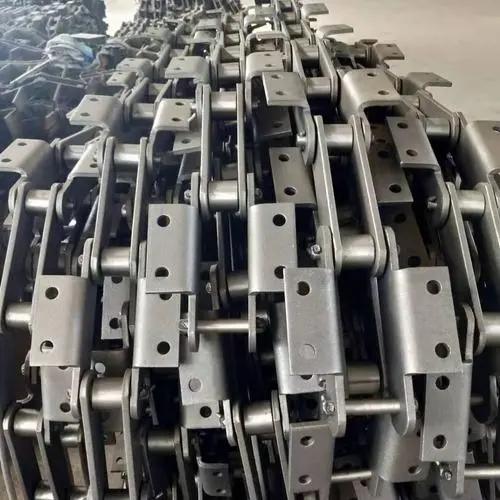

鏈 號 | 滾子形式 | 節(jié)距 | 鏈板厚度 | 銷軸直徑 | 附 件 尺 寸 | ||||
P | T | d | N | O | L | Q | S | ||
mm | mm | mm | mm | mm | mm | mm | mm | ||
3075 | R.S | 75 | 3.2 | 7.94 | 8 | 13 | 30 | 15.8 | 12.2 |
3100 | R.F.S | 100 | 40 | ||||||
5100 | R.S | 100 | 4.5 | 11.11 | 9.5 | 17 | 40 | 20.5 | 15.6 |
5150 | R.F.S | 150 | 60 | ||||||
10100 | S. | 100 | 6.3 | 14.29 | 11 | 22 | 30 | 28.1 | 21.3 |
10150 | R.F.S.B | 150 | 60 | ||||||
12200 | R.F.S | 200 | 7.9 | 15.88 | 15 | 27 | 80 | 34.7 | 26.2 |
12250 | R.F.S | 250 | 125 | ||||||
17200 | R.F.S | 200 | 9.5 | 19.05 | 15 | 27 | 80 | 45.2 | 34.9 |
17250 | R.F.S | 250 | 110 | ||||||
17300 | R.F.S | 300 | 150 | ||||||
20200 | R.F.B | 200 | 9.5 | 20.64 | 15 | 27 | 80 | 42.2 | 32.0 |
20300 | R.F.B | 300 | 150 | ||||||
25200 | R.F | 200 | 9.0 | 22.23 | 15 | 27 | 80 | 43.5 | 33.7 |
26300 | R.F.S | 300 | 9.5 | 22.23 | 15 | 27 | 140 | 48.1 | 37.8 |
26450 | R.F.S | 450 | 220 | ||||||
35300 | R.F.S | 300 | 9.0 | 25.4 | 15 | 27 | 140 | 48.5 | 38.7 |
36450 | R.F.S | 450 | 12.7 | 25.4 | 19 | 32 | 220 | 59.2 | 45.7 |
36600 | R.F.S | 600 | 300 | ||||||
52450 | R.F.S | 450 | 16.0 | 32.0 | 22 | 38 | 220 | 71.0 | 54.0 |
52600 | R.F.S | 600 | 300 | ||||||
5600 | R.F.S | 152.4 | 6.3 | 11.11 | 11 | 22 | 60 | 28.1 | 21.3 |
12600 | R.F.S | 152.4 | 7.9 | 15.88 | 15 | 27 | 50 | 34.7 | 26.2 |
