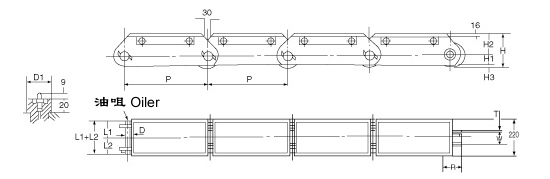

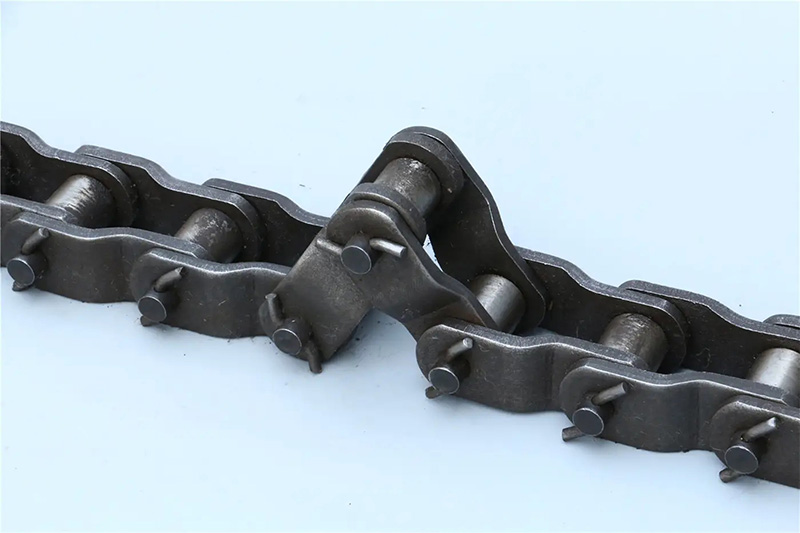

鏈 號 | 節距 | 滾子直徑 | 內節內寬 | 鏈板參數 | 銷軸參數 | 抗拉載荷 | ||||||||
P | R(max) | W(min) | T | H | H1 | H2 | H3 | D | D1 | L1+L2 | L1 | L2 | Q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | |
WH60300 | 300 | 125 | 65 | 12.7 | 171 | 42.5 | 108.5 | 20 | 28 | 36 | 165 | 88 | 77 | 600 |
WH60400 | 400 | 125 | 65 | 12.7 | 171 | 42.5 | 108.5 | 20 | 28 | 36 | 165 | 88 | 77 | 600 |
WH60500 | 500 | 125 | 65 | 12.7 | 171 | 42.5 | 108.5 | 20 | 28 | 36 | 165 | 88 | 77 | 600 |
WH90300 | 300 | 135 | 79 | 12.7 | 182.5 | 54 | 115 | 13.5 | 30 | 36 | 179 | 95 | 84 | 900 |
WH90400 | 400 | 135 | 79 | 12.7 | 182.5 | 54 | 115 | 13.5 | 30 | 36 | 179 | 95 | 84 | 900 |
WH90500 | 500 | 135 | 79 | 12.7 | 182.5 | 54 | 115 | 13.5 | 30 | 36 | 179 | 95 | 84 | 900 |
WH130300 | 300 | 150 | 84 | 16 | 195 | 61 | 120 | 14 | 38 | 46 | 197 | 104 | 93 | 1300 |
WH130400 | 400 | 150 | 84 | 16 | 195 | 61 | 120 | 14 | 38 | 46 | 197 | 104 | 93 | 1300 |
WH130500 | 500 | 150 | 84 | 16 | 195 | 61 | 120 | 14 | 38 | 46 | 197 | 104 | 93 | 1300 |
WH160400 | 400 | 175 | 91 | 16 | 227 | 69 | 139.5 | 18.5 | 41 | 46 | 205 | 108 | 97 | 1600 |
WH160500 | 500 | 175 | 91 | 16 | 227 | 69 | 139.5 | 18.5 | 41 | 46 | 205 | 108 | 97 | 1600 |
WH160600 | 600 | 175 | 91 | 16 | 227 | 69 | 139.5 | 18.5 | 41 | 46 | 205 | 108 | 97 | 1600 |
WH200600 | 600 | 180 | 102.6 | 19 | 225 | 76 | 135 | 14 | 45 | 50 | 229 | 119 | 110 | 2000 |
3754378 | 450 | 135 | 70 | 12.7 | 171.5 | 48.5 | 104 | 19 | 30.05 | 38 | 157.5 | 74.7 | 82.8 | 882 |
