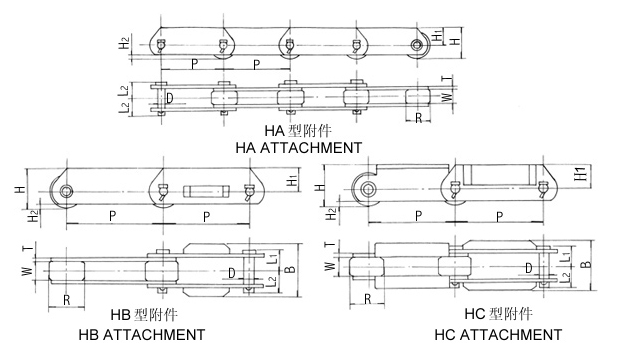

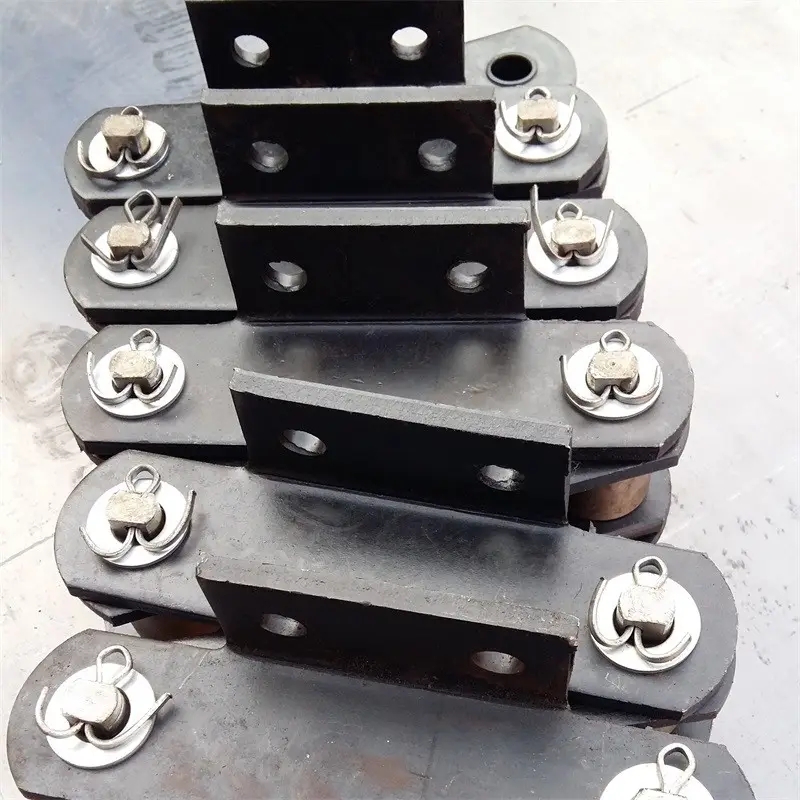

鏈 號 | 滾子形式 | 節距 | 內節內寬 | 滾子直徑 | 鏈條高度 | 鏈板參數 | 銷軸參數 | 抗拉載荷 | |||||
P | W(min) | R(max) | H | H1 | H2 | T | B | L1 | L2 | D | Q | ||
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | ||
W03075 | R | 75 | 16.1 | 31.8 | 36.9 | 21 | 4.9 | 3.2 | 50 | 18 | 20 | 7.92 | 30 |
W03100 | R | 100 | 16.1 | 31.8 | 36.9 | 21 | 4.9 | 3.2 | 50 | 18 | 20 | 7.92 | 30 |
W07100 | R | 100 | 22 | 40 | 44 | 24 | 4 | 4.5 | 68 | 24.5 | 29 | 11.10 | 70 |
W07150 | R | 150 | 22 | 40 | 44 | 24 | 4 | 4.5 | 68 | 24.5 | 29 | 11.10 | 70 |
W08150 | R | 150 | 27 | 44.5 | 50.3 | 28 | 8 | 6.3 | 80 | 31 | 35 | 11.10 | 80 |
W11150 | R | 150 | 30 | 50.8 | 57.4 | 32 | 6.4 | 6.3 | 90 | 33.5 | 40 | 14.27 | 115 |
W11100 | R | 100 | 30 | 50.8 | 57.4 | 32 | 6.4 | 6.3 | 90 | 33.5 | 40 | 14.27 | 115 |
W19152 | R | 152.4 | 37.1 | 57.2 | 63.5 | 35 | 6 | 8 | 105 | 41.5 | 47.5 | 15.90 | 190 |
W19200 | R | 200 | 37.1 | 65 | 73.5 | 41 | 10 | 8 | 105 | 41.5 | 47.5 | 15.9 | 190 |
W19250 | R | 250 | 37.1 | 65 | 73.5 | 41 | 10 | 8 | 105 | 41.5 | 47.5 | 15.9 | 190 |
W25250 | R | 250 | 51.4 | 80 | 90 | 50 | 13.8 | 10 | 122 | 52 | 54.5 | 19.10 | 250 |
W25300 | R | 300 | 51.4 | 80 | 90 | 50 | 13.8 | 10 | 122 | 52 | 54.5 | 19.10 | 250 |
W28200 | R | 200 | 49 | 85 | 95.5 | 53 | 10.5 | 10 | 145 | 52 | 61 | 22.20 | 285 |
W28300 | R | 300 | 57.2 | 85 | 95.5 | 53 | 10.5 | 10 | 145 | 56 | 65 | 22.20 | 285 |
W48250 | R | 250 | 66.7 | 110 | 112 | 62 | 12 | 12.7 | 170 | 68 | 77 | 25.40 | 485 |
W48300 | R | 300 | 66.7 | 100 | 112 | 62 | 12 | 12.7 | 170 | 68 | 77 | 25.40 | 485 |
W48400 | R | 400 | 66.7 | 100 | 112 | 62 | 12 | 12.7 | 170 | 68 | 77 | 25.40 | 485 |
W51450 | R | 450 | 77 | 110 | 125 | 70 | 17 | 16 | 200 | 82.5 | 93 | 31.8 | 510 |
